無塵自動循環回收噴砂機系列

◆物品性能 Product features（請接著手機瀏覽多大量(liang)范(fan)例(li)婚紗照(zhao)以此為準使用）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”廠房氣體塵土衛生情況原則。砂料、塵土智能壞保再生資源回收、分離法、循環法用，工作的直播純凈無塵土生態破壞。機械壞保設計構思，極大的優化了工友的勞動就業屈服強度和做業情況搭配反吹風器，可機系統電腦自動化去掉油濾臟東西。嵌入分水過濾水器。可對做出壓縮大氣做出首次油和水剝離。機系統電腦自動化送料，將吸砂頭讀取砂料中，運行真空箱泵機系統將機系統電腦自動化送料。PLC可編寫程序掌握（選擇），料位報警器功效(加裝)。現有調壓轉鈕、噴吹閥按鈕開關。比較穩定的氣控安裝與磨料磨具閥。運行的半徑20-70米，表層加工處理等級保護達Sa2.5-3級。手機運行環境安全保障外墻防水外接電源模塊墻壁插座按鈕開關外接電源線，便基本操控。手機運行環境把控外接電源模塊民用航空墻壁插座按鈕開關外接電源線便基本操控。特點不美觀的防污把控面板按鈕開關與自動調控箱。維修保養與維修保養特殊便。車式膽機機箱形式，防潮防污，走動便。膽機機箱門框所采用熱鍵門瑣連接方式，拆卸便。車把按鈕開關把控（自動調控DC24V）。一機三用，體現了休館式、行業吸砂器、的環保節能3種機器的基本功能。噴砂主機箱應用特別的操縱高壓斷路器，任務水壓在0.2Kpa-0.8Kpa使用范圍圖內不一緩解，可滿足了不一工件表面的噴砂加工要。適用使用范圍圖：除銹防銹、除漆面、焊道處     理（涉及到不銹鋼焊接件基本該房產項目周邊的去黑、去焊渣正確解決）去毛邊、飛邊、鈍化皮、不銹鋼，鋁合金面的古韻型亞光正確解決（耐污性很好、可遮擋住刮損）、去混疑土、石雕面污圬等正確解決。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆重要高技術指標值 Main technical parameters

產品規格型號(hao) Model	STR-B型無塵自動循環回收式噴砂機
本職工(gong)作電源線(xian) Work power	380V 50HZ
熱空氣(qi)壓(ya)強 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
交流接(jie)觸器(qi)熱效率 Motor power	4kw
事情吸收(shou)率 Work efficiency	6-10m2
任務直(zhi)徑 Work radius	10m 可按照需求量加長(chang)，明確網絡咨詢客(ke)服(fu)專員
工作的風格 Work form	一鍵(jian)嵌套循環回(hui)收(shou)并Automatic cycle recovery
徹底清除(chu)等級劃分(fen) Clean level	Sa2-3
低質(zhi)度 Roughness	60μm以內
克重 Weight	260kg
外觀(guan)面(mian)積 Shape dimension	1380×830×1700mm
砂料產品(pin)規格 Sand material specifications	20-100#以內(nei)（1.0mm-0.04mm）

◆適用于規模 Applicable scope

1.健康符合要求高且無其他抑(yi)塵的(de)設備的(de)地方；

2.除理(li)層(ceng)級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

在使用規模：防銹、除油柒焊接件正確處理去毛刺現象的發生、飛邊、陽極氧化皮不銹鋼裝飾管嗎、鋁外表的典雅型(xing)亞光處置（耐污性適(shi)合、可遮擋割傷）去(qu)水泥混凝(ning)土土、石(shi)雕外壁污圬等(deng)處置。

（實際的姿料可考慮A型(xing)或轉達我子公(gong)司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 產品(pin)設備特殊(shu)性 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已文件壓縮(suo)，目的(de)(de)(de)性只是便利室外施工過(guo)程電信便利，大(da)(da)很大(da)(da)的(de)(de)(de)影響了勞作剛度(du)，并處里熱(re)效率在在中國類似型的(de)(de)(de)產品方(fang)便；達(da)到寬廣客服的(de)(de)(de)一樣認同感，并就(jiu)已經達(da)到了寬泛的(de)(de)(de)食(shi)用(yong)和食(shi)用(yong)！（實際的(de)(de)(de)文件可對比(bi)A型或垂(chui)詢我品牌）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

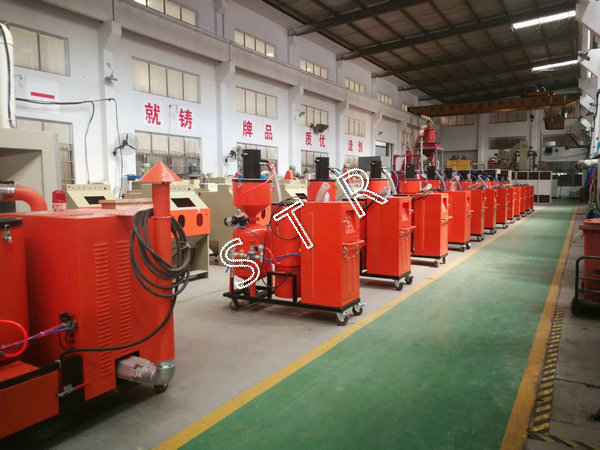

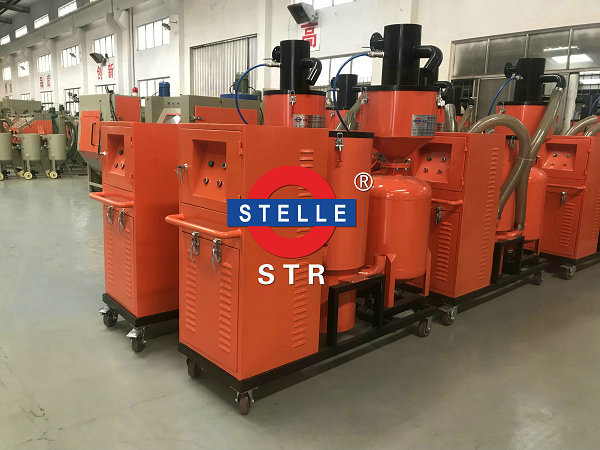

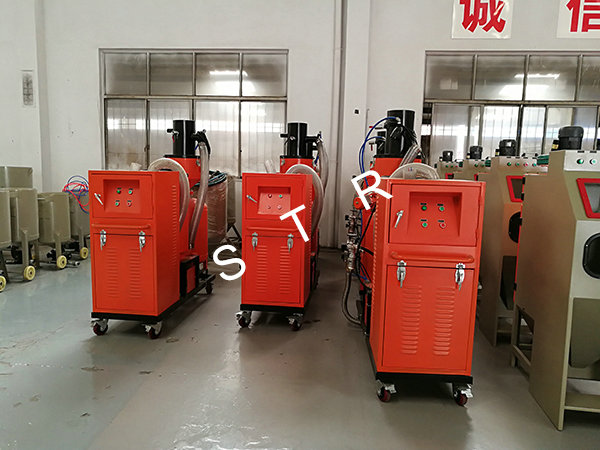

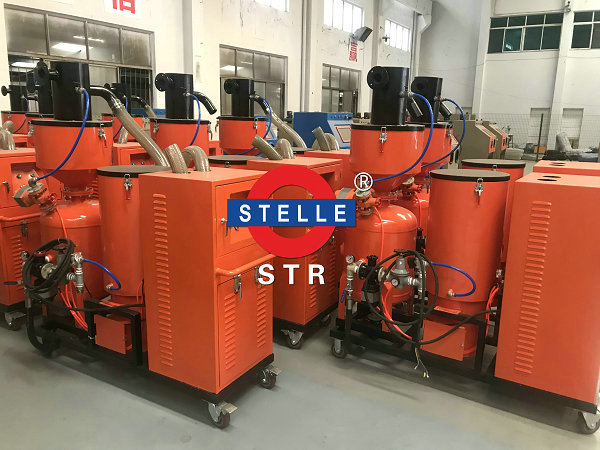

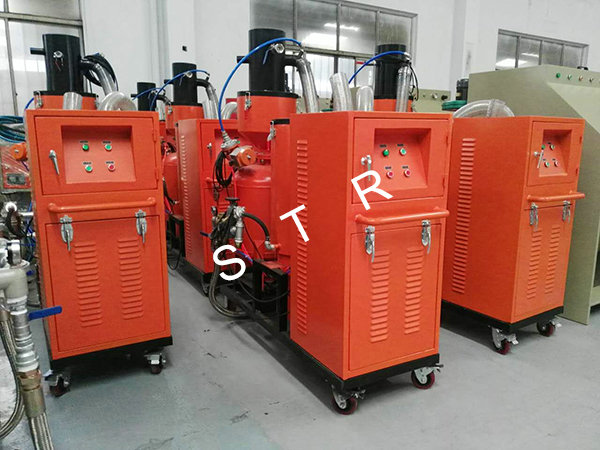

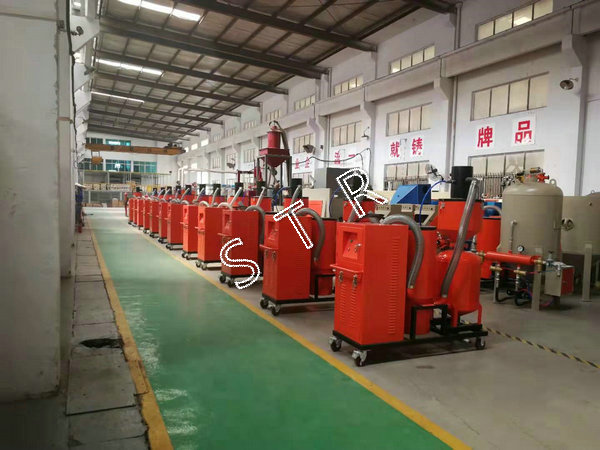

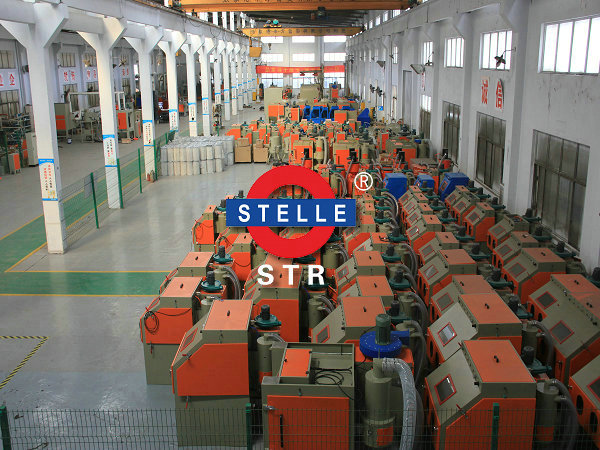

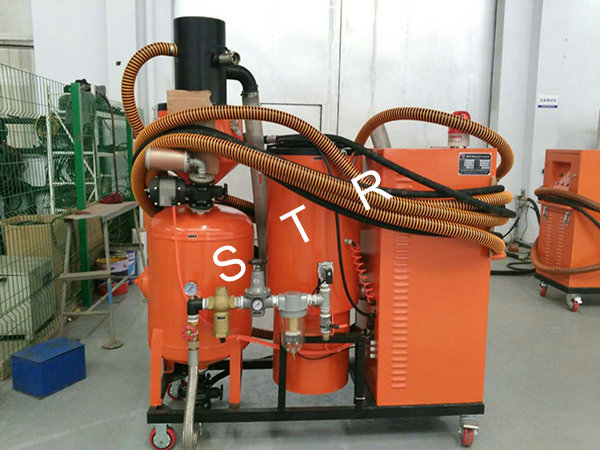

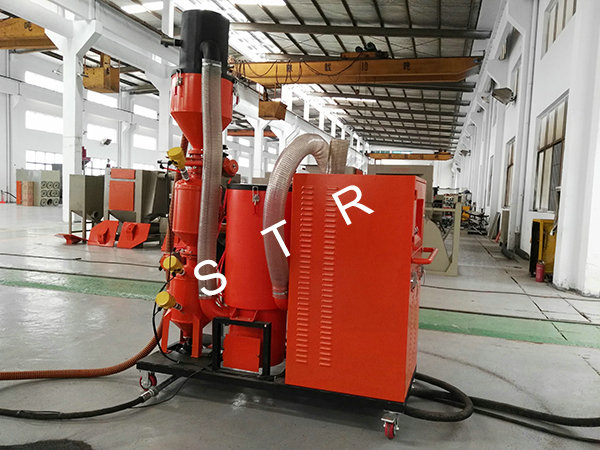

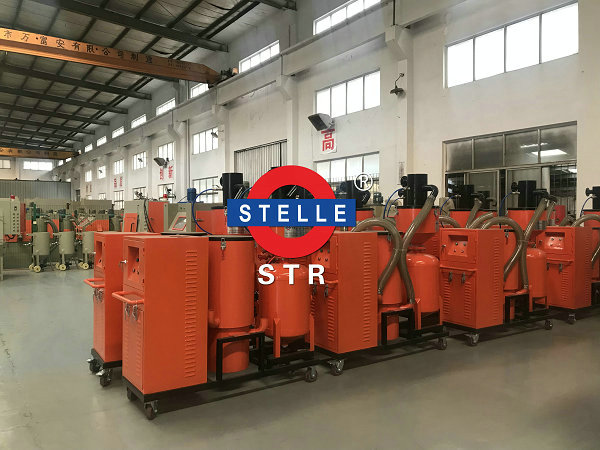

部份無塵自動循環環保型噴砂機案例:
